HALLOWELL ANESTHESIA WORK STATION
Hallowell Anesthesia Work Station (AWS)

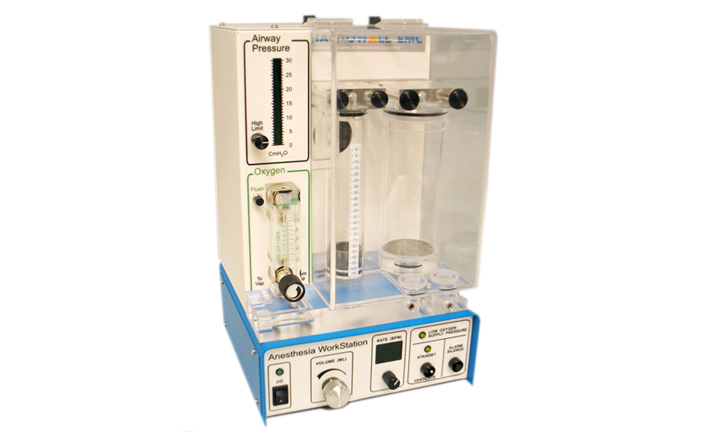

Hallowell Anesthesia Work Station
The AWS has proven itself to be well suited for both short and long term anesthetic procedures with animals ranging in weight from about 150 grams to 6 or 7 kilograms. In procedures with these small animals the AWS has been used for mask inductions and the subsequent maintenance of spontaneously breathing masked or intubated patients as well as providing ventilatory support for the intubated patient for minutes or days at a time. Throughout these procedures the AWS, with any precision vaporizer, has been shown to facilitate the administration of gas anesthetics, holding the subject in a very smooth controlled anesthetic plane while providing precise respiratory support. The AWS is currently being used on as diverse species as rabbits, turtles, tamarin monkeys, woodchucks, crows, Cooper's hawks, various ducks, Canada goose, snakes, rats, ferrets, owls and even the cat and dog.
System Includes
- Oxygen Flow Meter, 0.2 to 1 lpm
- Connections to and from an anesthetic vaporizer
- Adjustable High Pressure Limit, 10 - 30 cmH2O as indicated on the 30 segment airway pressure bar graph
- High Breathing System Pressure Alarm
- Airway Pressure Manometer in bar graph format, 0 - 30 cmH2O
- Low Breathing System Pressure Alarm
- 0 - 100 ml Tidal Volume displacement ventilator tube
- 300 ml CO2 absorber
- Enclosed and heated breathing system chamber
- Power on/off switch and indicator
- Volume Control
- Rate Control, 4 - 80 breaths per minute and large LED display
- Standby/Ventilate switch and indicator
- Low Oxygen Supply Pressure Alarm
- Alarm Silence Push Button
- DISS Male Oxygen supply inlet connection
- 19mm Scavenging port
- 90/240 Vac, 47/440 Hz operation
- Circle system tubes with standard 15mm ET tube connection
- 2.5mm low dead space ET tube adaptor that fits luer catheters
